Aluminium 7050 Angles manufacturer in Ethiopia

ASTM B211 Aluminium 7050 H22 Structural Angles Dealer in Ethiopia, UNS A97050 Aluminium Cold Rolled Angles Supplier in Dire Dawa, Aluminum 3.4144 T Angles in Addis Ababa, Aluminium Alloy 7050 H24 Anodize Angle Size Chart, H14 Temper Aluminum 7050 Unequal L Angles Price in Ethiopia, 7050 H16 Aluminum Angles Supplier in Ethiopia, Aluminium Alloy 7050-0 Angle Bars Stockist in Mek’ele, Aluminium 3.4144 Angles Exporter in Ethiopia, Al 7050 T Angles Stockist in Adama, Aluminum Alloy A97050 Angles Distributor in Gondar, 5mm Thick Aluminium 7050-0 Angle Manufacturer in Addis Ababa

Aluminium 7050 Angles are top-notch structural components crafted from aluminium alloy 7050, renowned for its exceptional strength, toughness, and resistance to stress corrosion cracking. These L-shaped profiles are produced using cutting-edge extrusion and heat treatment techniques, ensuring remarkable dimensional accuracy and mechanical integrity. You’ll find Aluminium 7050 Angles in various applications, especially in aerospace, defense, and high-stress engineering fields that require lightweight yet robust materials. With their impressive machinability, fatigue resistance, and long-lasting stability, these angles are perfect for load-bearing structures and precision frameworks that operate under extreme conditions. They truly embody performance, reliability, and durability across demanding industries.

Aluminium 7050 Angles mainly consist of aluminium, enhanced with zinc (5.7–6.7%), magnesium (1.9–2.6%), copper (2.0–2.6%), and trace elements like chromium and zirconium. This alloy boasts a tensile strength of up to 570 MPa, a hardness of around 150 HB, and a density of 2.83 g/cm³. It offers excellent resistance to stress cracking, fatigue, and exfoliation corrosion. These angles are heat-treatable, retaining high strength and dimensional stability even at elevated temperatures, making them ideal for critical aerospace and structural applications where peak performance is a must.

DIN 3.4144 Aluminium Alloy Angle Price in Addis Ababa, Aluminium 7050 H24 Angle Thickness, Al 7050 H18 Hot Rolled Angle Exporter in Dire Dawa, UNS A97050 Aluminum Alloy Angle Supplier in Ethiopia, Stockist of Aluminium Alloy 7050 H14 Extrusions Angle in Adama ,H14 Temper Aluminum 7050 Unequal T Angles Supplier in Ethiopia, UNS A97050 Aluminum Alloy Angle Price List in Mek’ele, Al 7050 Angle Thickness Gauge In MM, DIN 3.4144 Aluminum L Angles Distributor in Gondar, Al Equal T 7050 Angles Exporter in Dire Dawa, ASME SB221 Aluminium 7050 T Angles Supplier in Ethiopia, Aluminum 7050 Unequal T Exporter in Gondar, Aluminium 7050 L Angles in Adama

Specifications of Aluminium 7050 Angles

Standards : ASTM B221 / B211 ASME SB221 / SB211, EN573, EN485, AMS 4003, AMS 4102

Temper : O,H12,H14,H16,H18,H19,H22,H24

Standard : ASTM, ASME, AMS, GB/T, JIS

Thickness : 50 mm to 6000 mm Long

Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm

Length : 1 To 6 Meters, Custom Cut Length

Finish : Mill, Customer specific finish

Surface : Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc

Aluminium 7050 Angles Chemical Compositions

Weight %	Zn	Cu	Mg	Zr	Fe	Si	Mn	Ti	Cr	Others (total)
Minimum	5.7	2.0	1.9	0.08	–	–	–	–	–	–
Maximum	6.7	2.6	2.6	0.15	0.15	0.12	0.10	0.06	0.04	0.15

Aluminium 7050 Angles Mechanical Properties

Material	Temper	Tensile Strength (ksi)	Yield Strength (ksi)	Elongation in 2″ %
Aluminium Alloy 7050 Angle (AMS 4340)	T76511	79	69	7
Aluminium Alloy 7050 Angle (AMS 4340)	T73511	70	60	8
Aluminium Alloy 7050 Angle (AMS 4342)	T74511	73	63	7

Equivalent Grades Of Aluminium 7050 Angles

UNS	EN	DIN,WNr	ISO
A97050	EN3982	3.4144	AlZn6CuMgZr

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

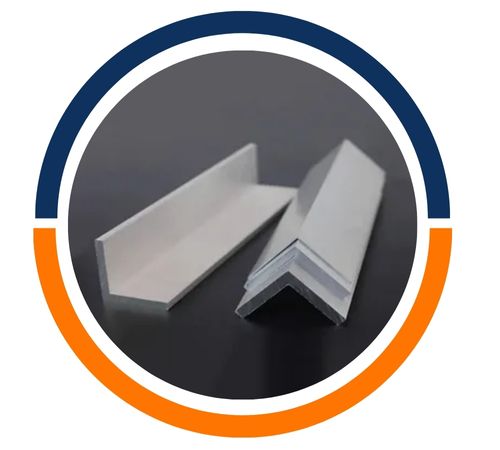

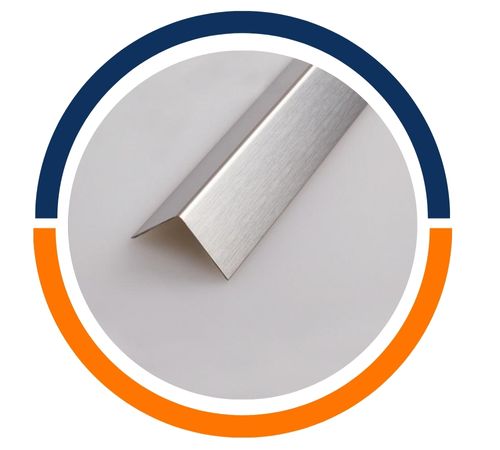

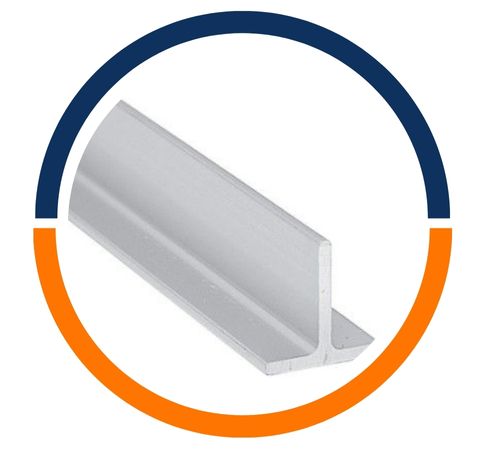

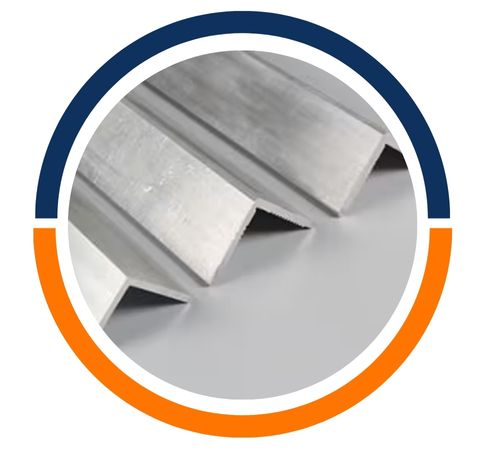

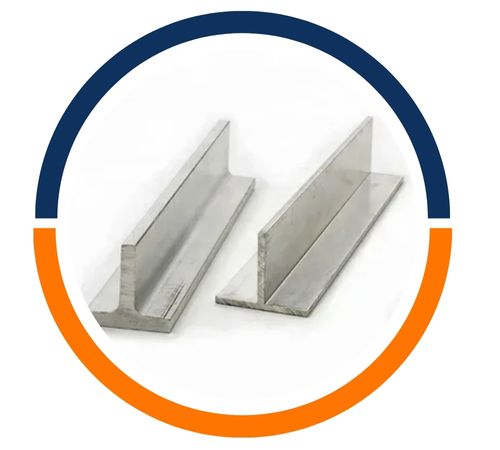

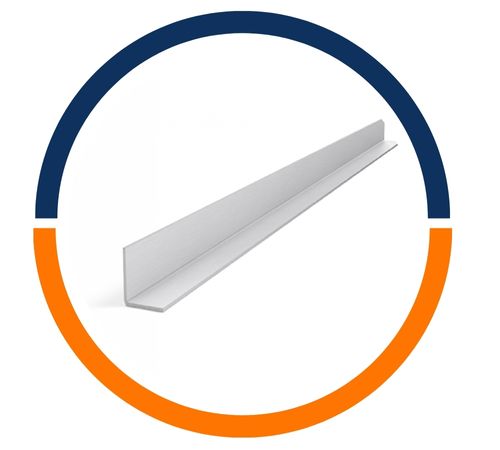

Types of Aluminium 7050 Angles

Largest Aluminium 7050 Angles Manufacturer and Exporter in Addis Ababa, Ethiopia

Haider Aluminium based in Addis Ababa, Ethiopia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Are Custom Sizes Available For Aluminium 7050 Angles?

Yes, we offer custom sizes for Aluminium 7050 Angles to meet specific project needs. Our team at Haider Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@haideraluminium.com

Uses of Aluminium 7050 Angles

Aluminium 7050 Angles are widely used in the aerospace sector for aircraft frames, wing components, and landing gear structures, where a high strength-to-weight ratio and durability are crucial. In defense, they find their place in military vehicle frameworks, weapon mounts, and armor systems. The automotive and marine industries also rely on them for chassis reinforcements, support brackets, and precision-engineered assemblies. Additionally, they’re perfect for robotics, tooling, and heavy machinery that demand superior mechanical strength.
